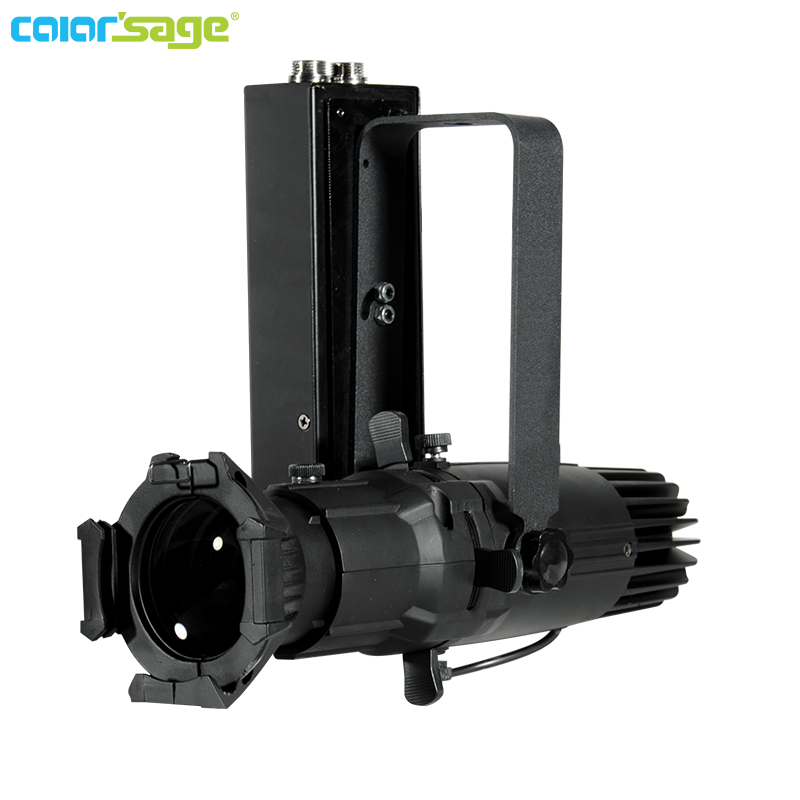

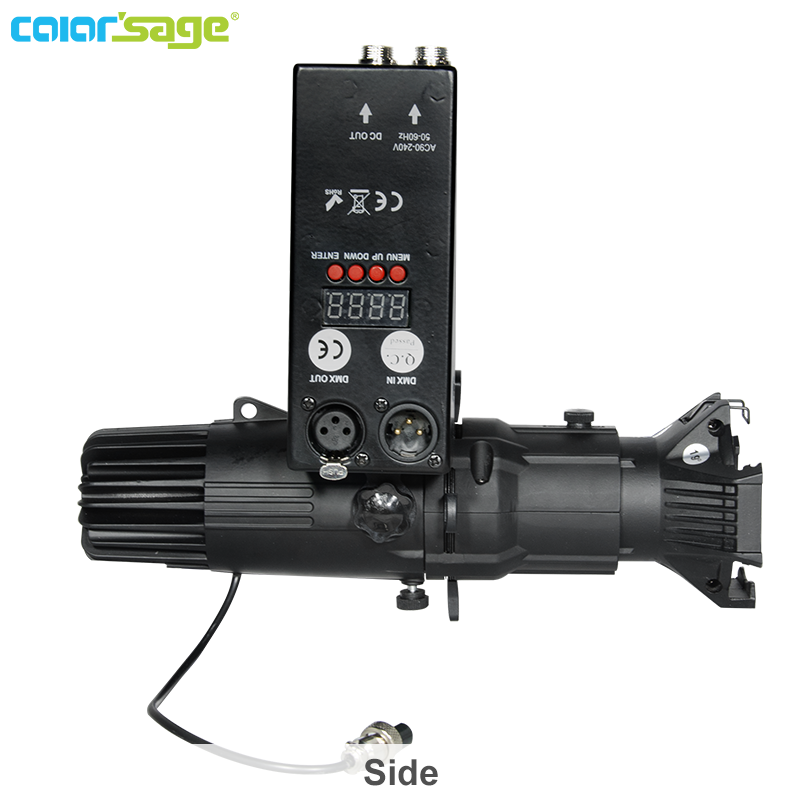

CS-T30A Mini Profile Light

Color Sage Lighting Electronics Limited

CS-T30A Mini Profile Light CS-T30A Mini Profile Light
IR remote control * DMX 512 (Optional)
Dimming / Graphic cutting / Strobe effect

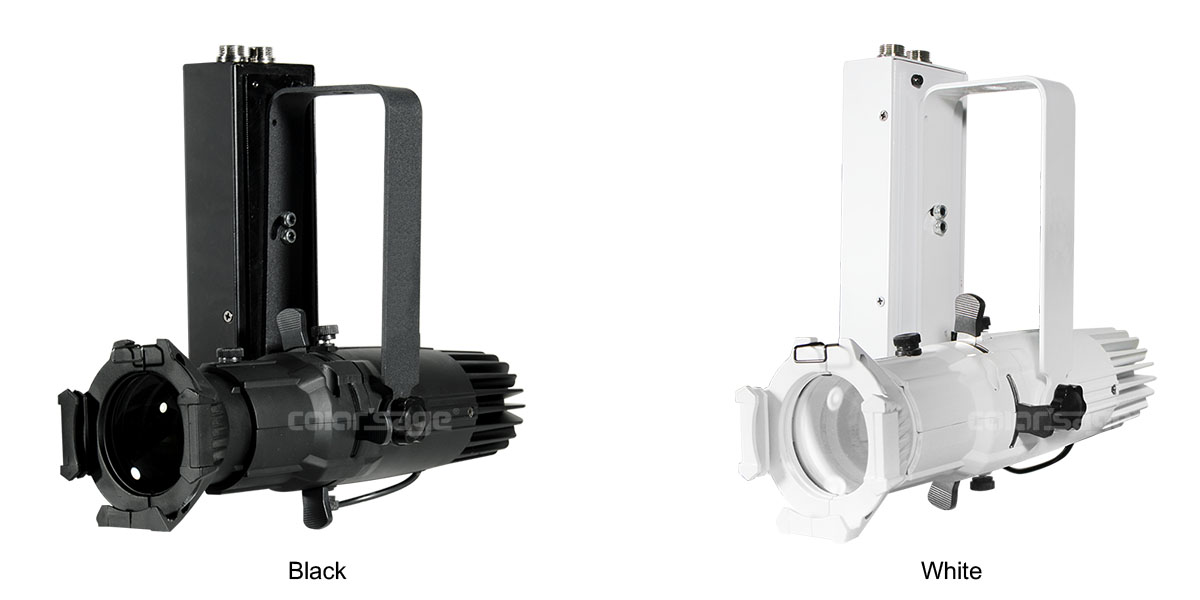

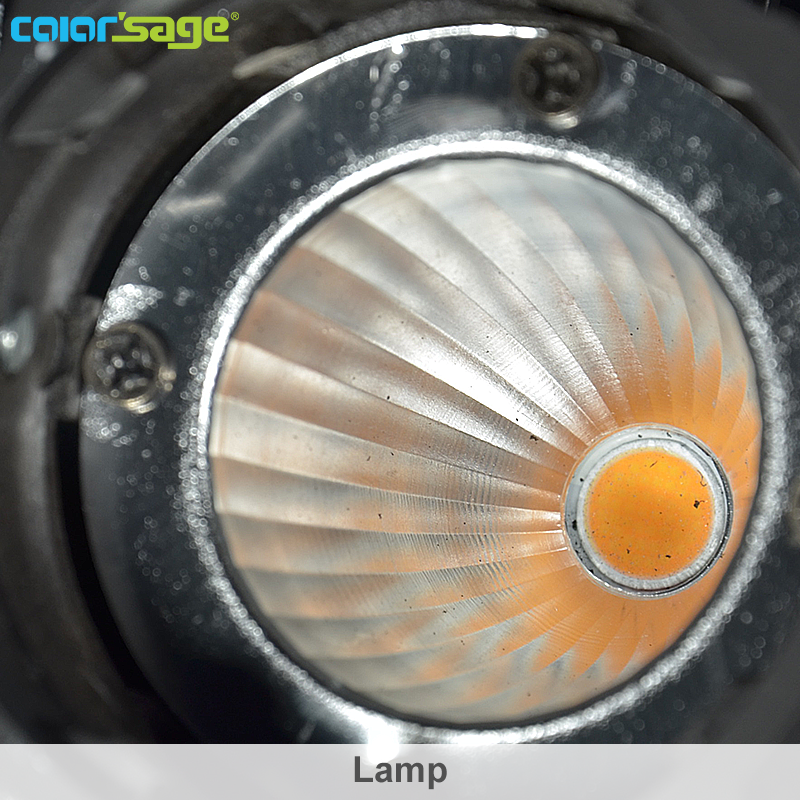

CS-T30A is a mini profile light that uses a 20W COB LED for extremely bright lighting and uniform light saturation. Available in black and white look.

CS-FE20 waiguan


High-contrast aspherical lenses, glass reflectors, eliminate over 90% of infrared radiation (heat) and are made of high-strength fire-resistant black ABS. 4 cutting pieces, you can cut any graphic effects. Smooth manual focus system, spot edges can be adjusted sharp and gentle effect.


Mini body, high-intensity light output, uniform spot, 4 cutting patterns of metal, with the common control methods: infrared remote control, DMX512 control. This Product is commonly used in stage lighting, live television studio lighting, product display and lighting, etc.


CF-FE20 xiaoguo2.jpgCF-FE20 xiaoguo1.jpg


If you want to learn more, please contact customer service, you can also contact

For more information, you can follow our Facebook.

Thank you for your attention!


Model NO.: CS-T30A
LED Quantities 1pc COB LED
Input Voltage 90-260VAC/50-60Hz
Power Consumption 20W Cool white (Optional),
20W Warm white (Optional),
20W Cool white + warm white 2 in 1 (Optional).

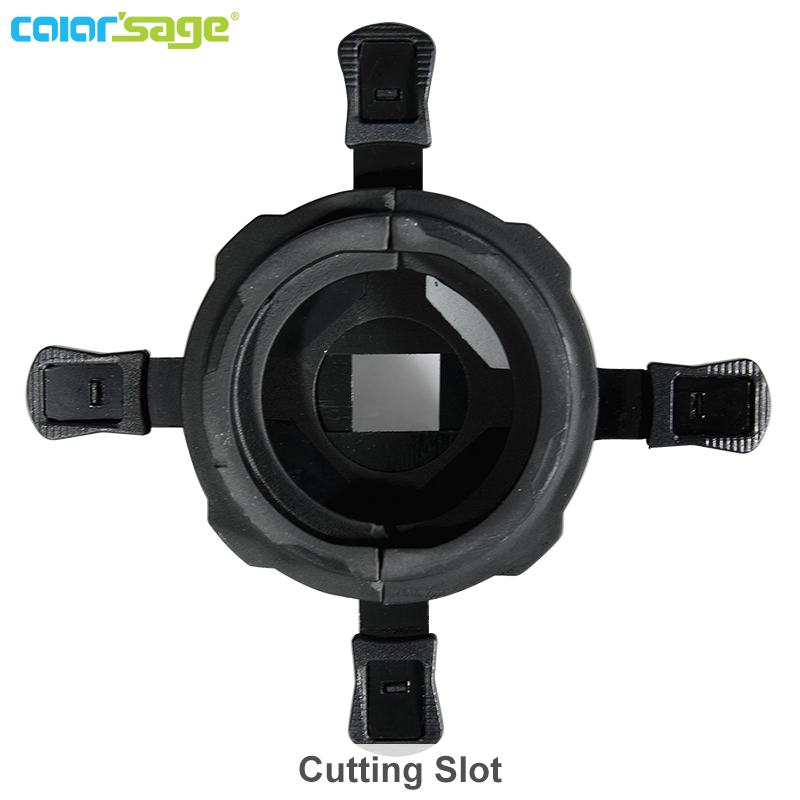

Cutting pieces 4

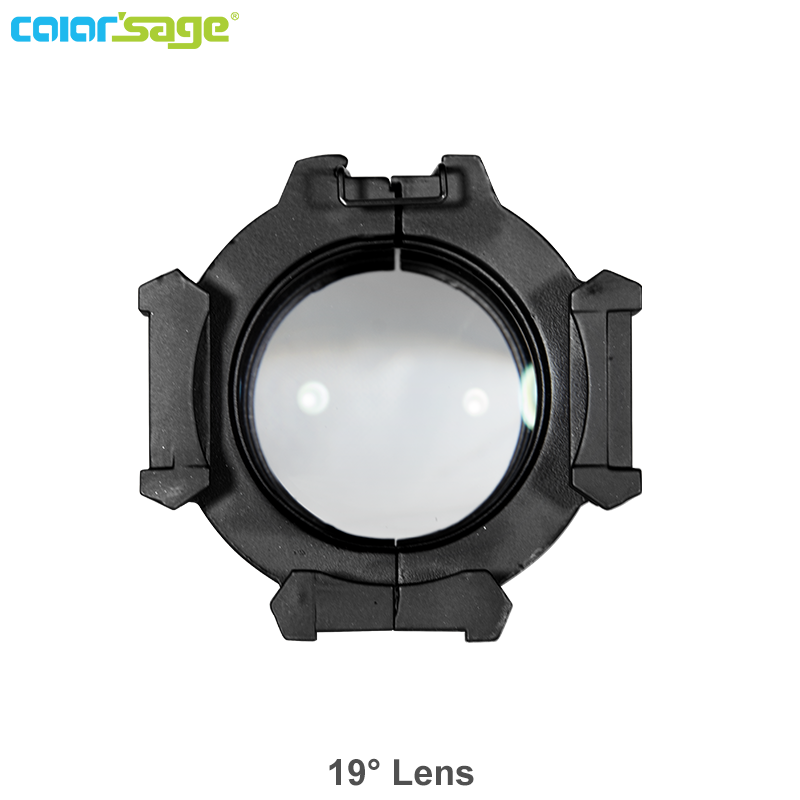

Lens Tube
19° (Optional),
26° (Optional),
36° (Optional),
50° (Optional).
Zoom Mode Manual zoom.
Material Science Black / White ABS

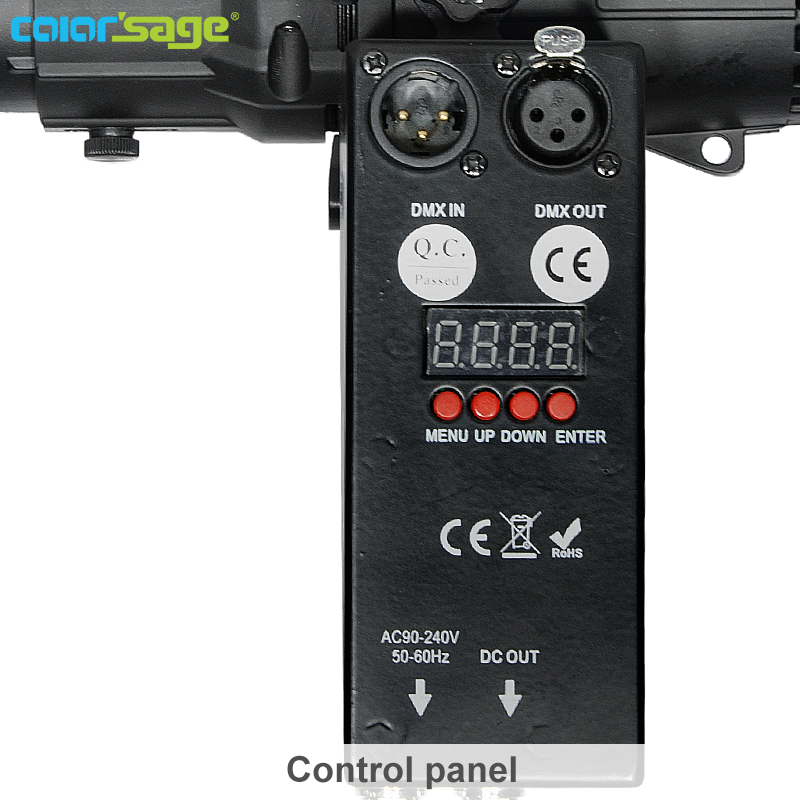

Control 1. IR remote control,
2. DMX 512 (Optional).
Color 5600K Cool white (Optional),
3200K Warm white (Optional),
Cool white + Warm white 2 in 1 (Optional).
Effect 1. Dimming,
2. Graphic cutting,
3. Strobe effect.
Channel 2/5 DMX channels USITT for cool white + warm white 2 in 1,
1/3 DMX channels USITT for single color.
Display Screen LCD display
Packing & weight
Size 250mm*170mm*110mm
Net Weight 1.3kg
Packing 250mm*680mm*330mm
Gross Weight 2kg
