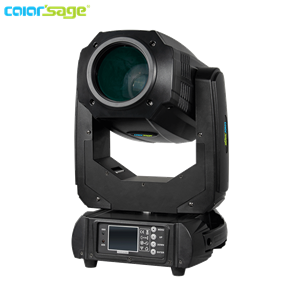

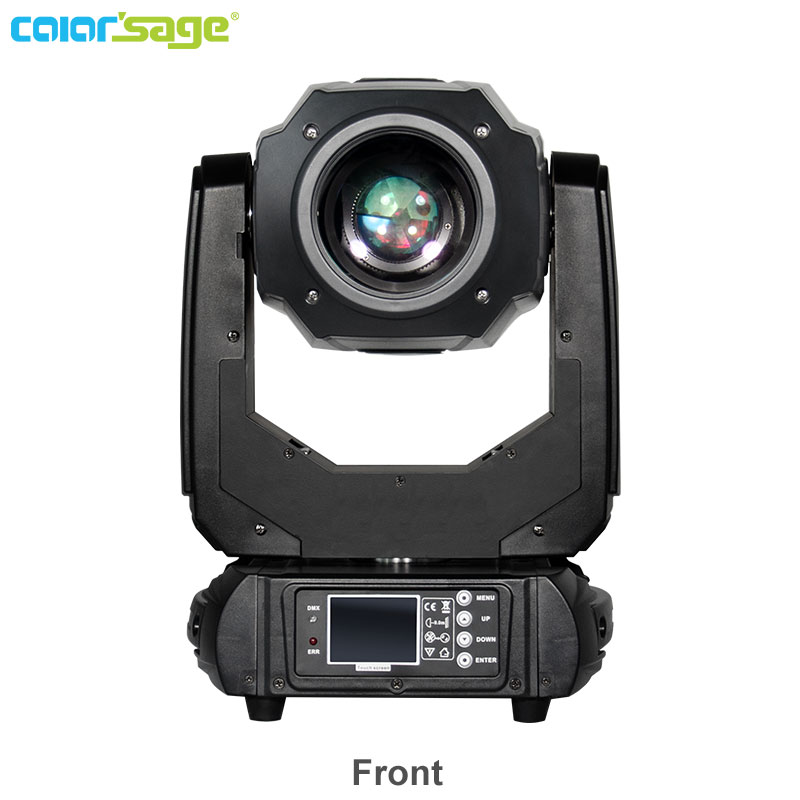

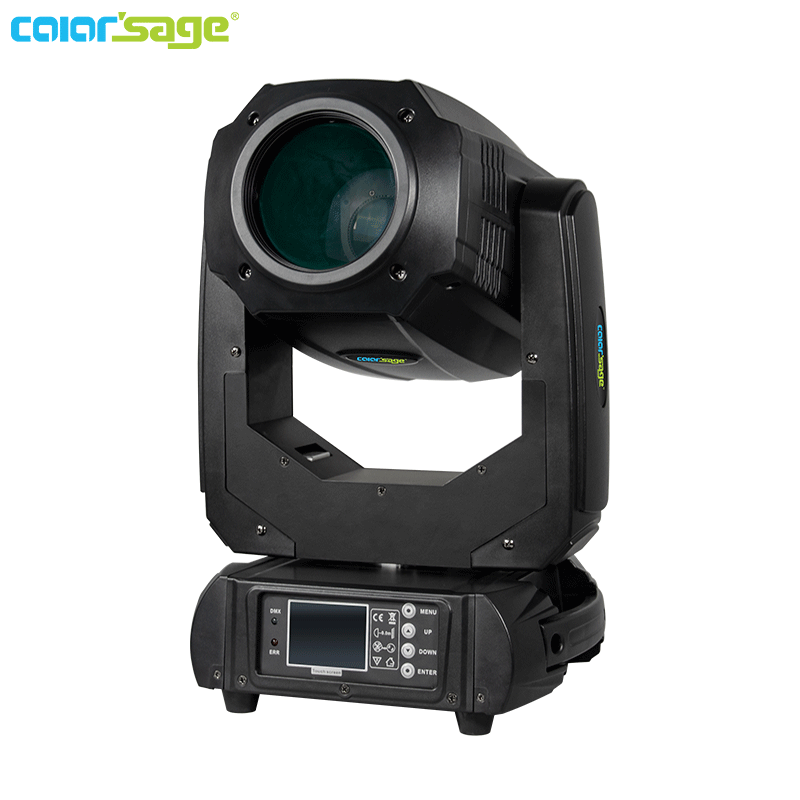

CS-M300A Spot light

Color Sage Lighting Electronics Limited

Master/Slave * Sound actived * Automatic * DMX 512
Beam / Atomization / Zoom / Linear color effect / Pattern(Color overlay, Jitter)

CS-M300A is a three-function light beam, pattern, soft light, power 300W moving head light.

The CS-M300A uses a 200W LED lamp bead to provide an energy-efficient cooling system. The shell is made of flame-retardant plastic, which is resistant to pressure, fire, fast heat dissipation and light weight.

It is also equipped with a pattern plate that holds 9 patterns. A rotation pattern plate contains 7 color rotation patterns and a 9-color color plate.

CS-M300A effect 2

CS-M300A effect 4

With prisms and focus/fogging effects, this light is often used for stage lighting, event lighting, bar nights and disco lighting, musicals and church lighting.

If you want to learn more, please contact customer service, you can also contact [email protected]

For more information, you can follow our Facebook.

Thank you for your attention!

Model NO.:	CS-M300A

Specifications
LED Quantities	1pc*200W LED
life span	22,000 hrs
Input Voltage	90-220VAC/50-60Hz
Power Consumption	300W
Material Science	Plastics

Function
Control	1. Master/Slave, 2. Sound actived, 3. Automatic, 4. DMX 512.
Color	White + 9 kinds colors
Color
Effect	Beam, Atomization, Zoom, Enlarge, Linear color effect, Pattern(Color overlay, Jitter)
Fixed pattern disk	9 kinds patterns
Fixed pattern disk
Rotate pattern disk	7 kinds patterns
Rotate pattern disk
Channel	18 CH
Beam Angle	0°-4°

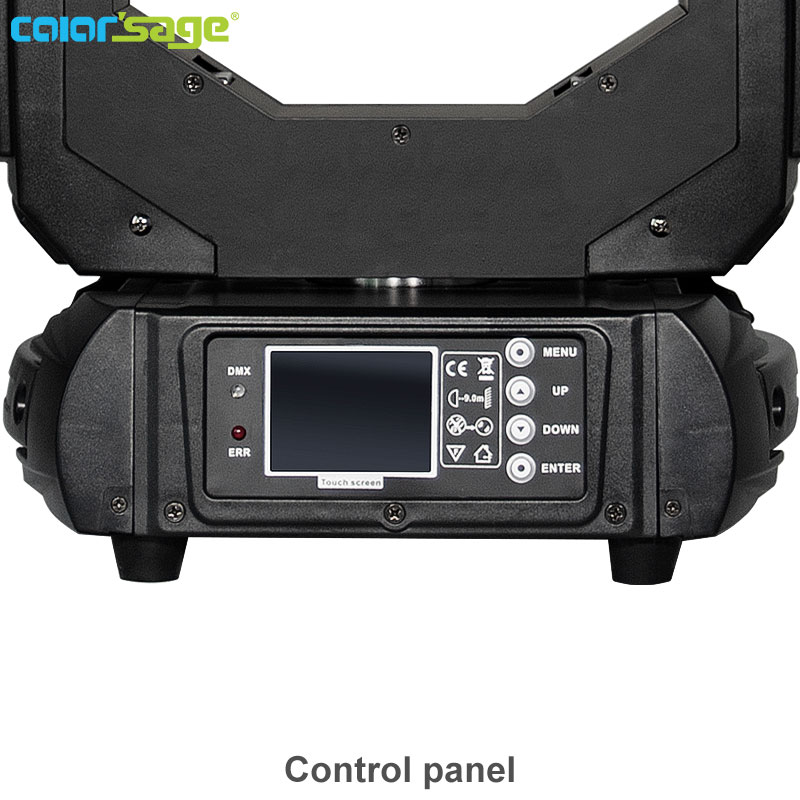

Display Screen	LCD display
Pan/Tilt	540°/270°

Packing & weight
Size	300mm330mm460mm
Net Weight	14.5kg
Packing	515mm440mm725mm
Gross Weight	16kg
