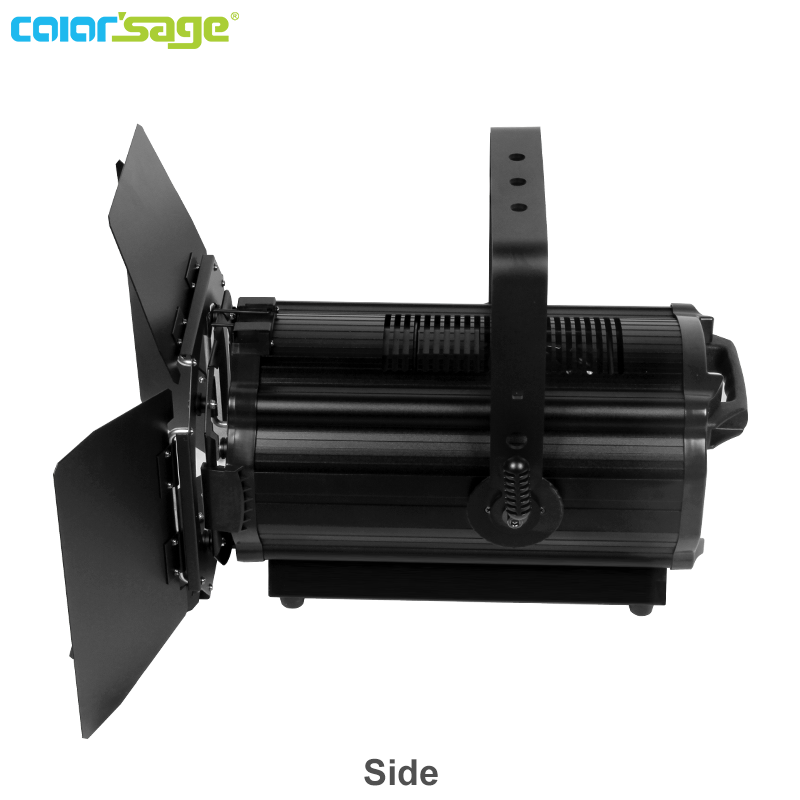

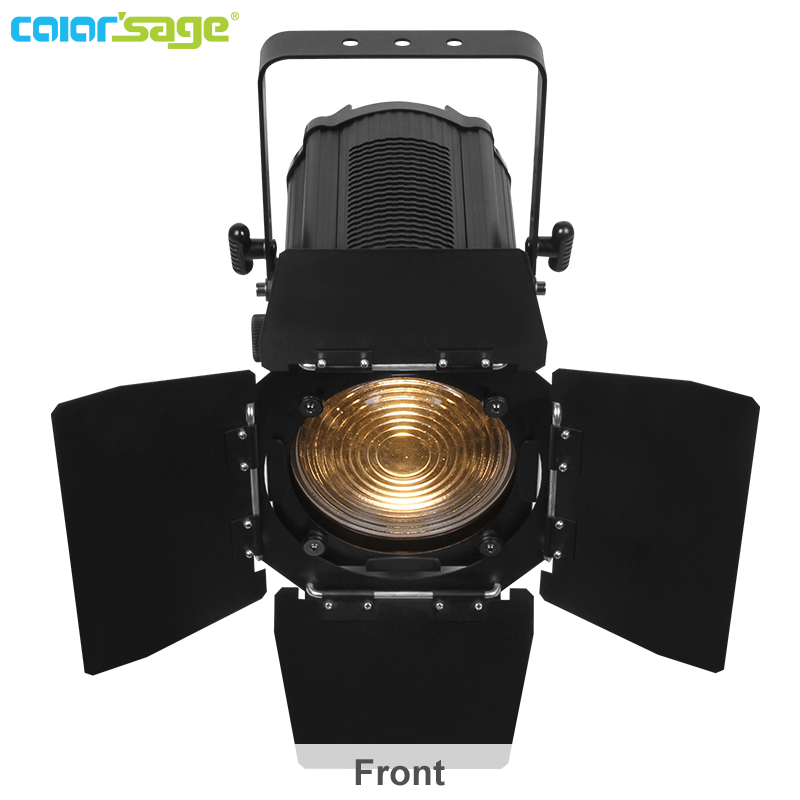

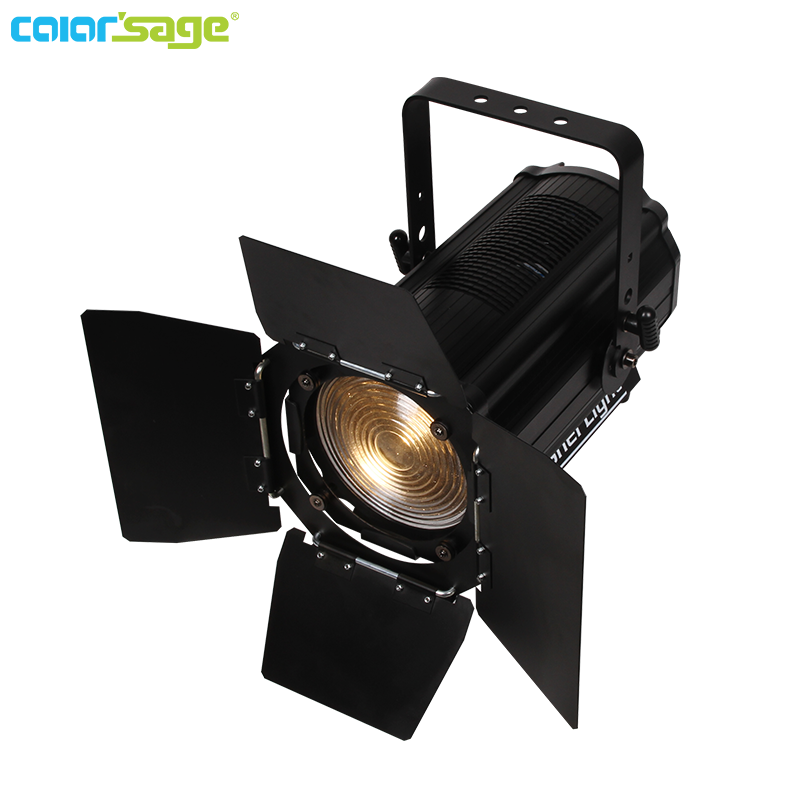

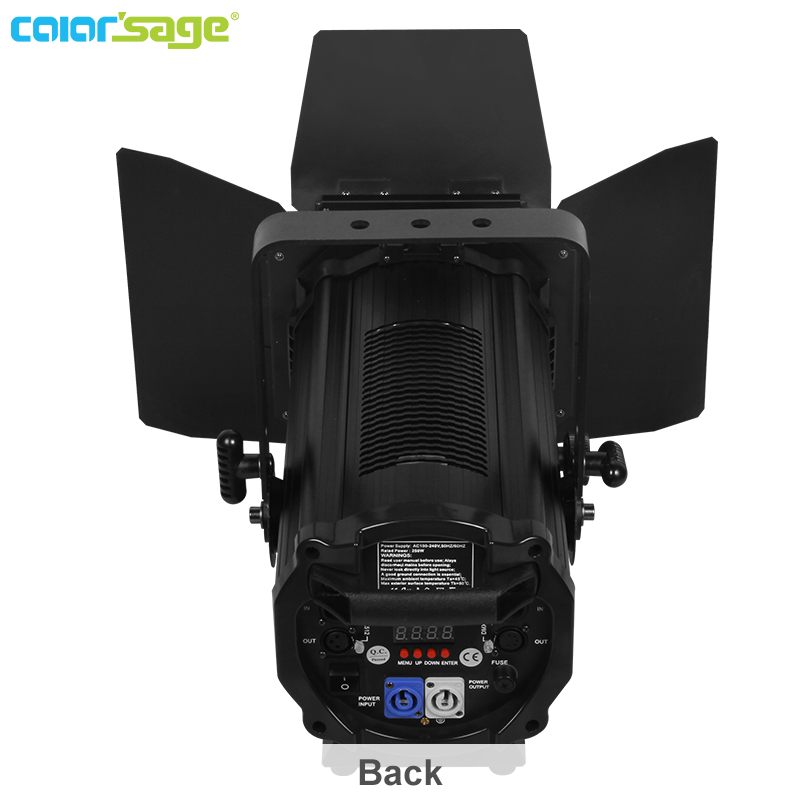

CS-T300A Fresnel Light

Color Sage Lighting Electronics Limited

CS-T300A Fresnel Light CS-T300A Fresnel Light

Slave/Master * Sound actived * Auto * DMX 512
0-100%LED dimmer / Strobe effect


CS-T300A is a special Fresnel Light, color rendering Index is Ra≥92, high efficiency fresenal lens, with a manual zoom system from 15°-50°.


The shell made by rugged, die cast aluminum alloy, thermally insulated knobs and single aluminum handle for installing.


This product has the advantages of 0-100% Smooth and precise linear dimmer, preset variable/random strobe and dimming pulse effect.


If you want to learn more, please contact customer service, you can also contact

For more information, you can follow our Facebook.

Thank you for your attention!

Model NO.: CS-T300A
LED Quantities 1pc COB LED
Input Voltage 90-260VAC/50-60Hz
Power Consumption 300W Cool white (Optional),
300W Warm white (Optional),

200W Cool white  (Optional),
200W Warm white  (Optional),
200W RGBW 4 in 1 (Optional),
200W RGB 3 in 1 (Optional),
200W Cool white + warm white 2 in 1 (Optional),

120W Warm white (Optional),
120W Cool white (Optional).
Zoom Mode Manual zoom (Optional), from 15° to 50°
Motorized zoom (Optional), from 15° to 50°.
Material Science Alloy

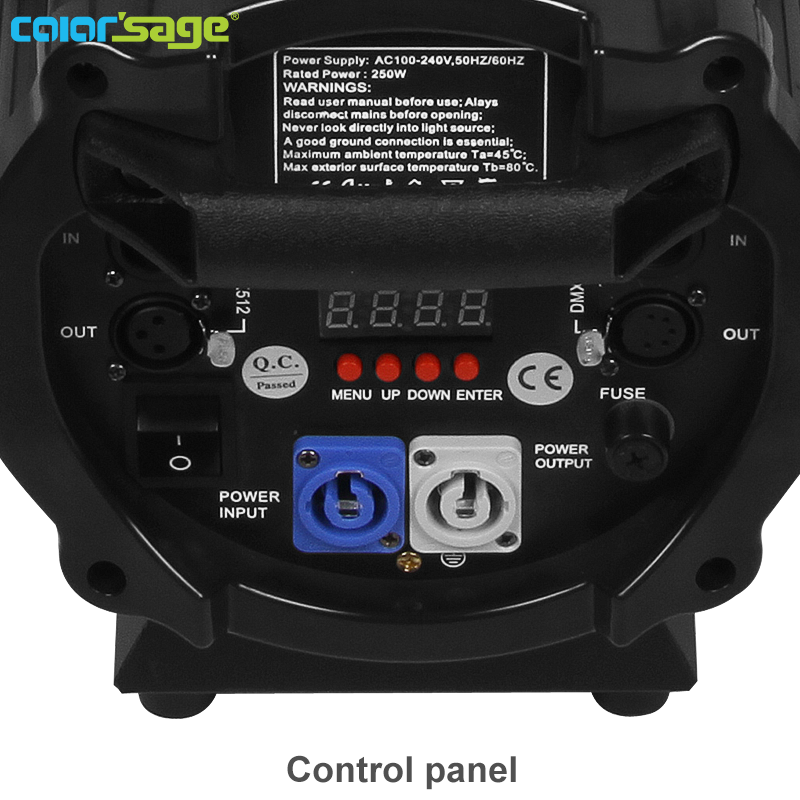

Control 1. Slave/Master,
2. Sound actived,
3. Auto,
4. DMX 512.
Color 5600K Cool white (Optional),
3200K Warm white (Optional),
RGBW 4 in 1 (Optional),
RGB 3 in 1 (Optional),
Effect 1. Dimming,
2. Strobe effect.
Channel 4/8 DMX channels USITT for RGBW 4 in 1,
3/7 DMX channels USITT for RGB 3 in 1,
2/5 DMX channels USITT for cool white + warm white 2 in 1,
1/3 DMX channels USITT for single color.
Display Screen LCD display
Packing & weight
Size 220mm*397mm*378mm
Net Weight 8.7kg
Packing 325mm*580mm*320mm
Gross Weight 10.5kg
