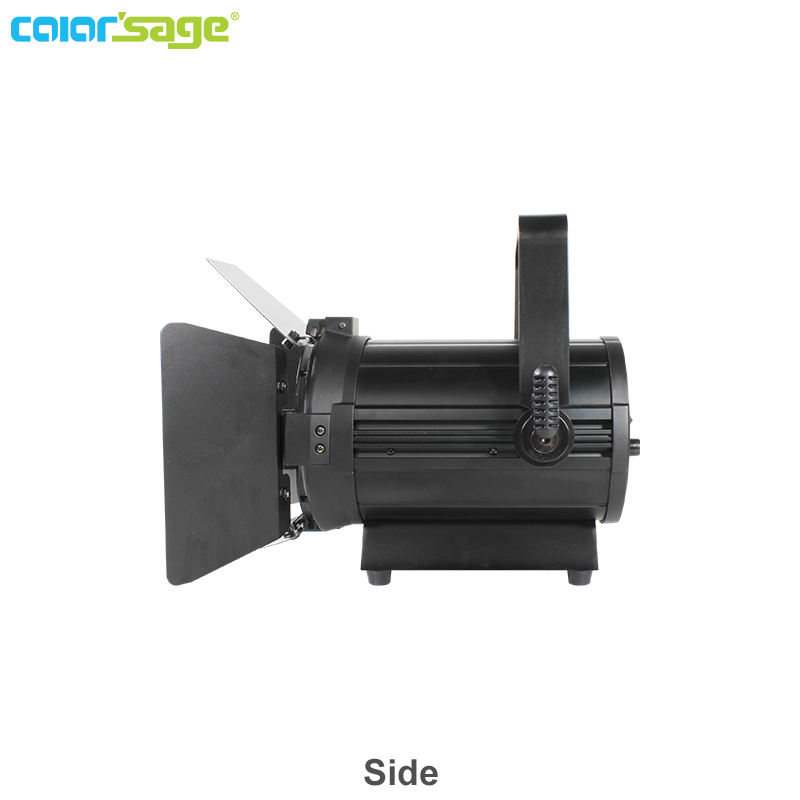

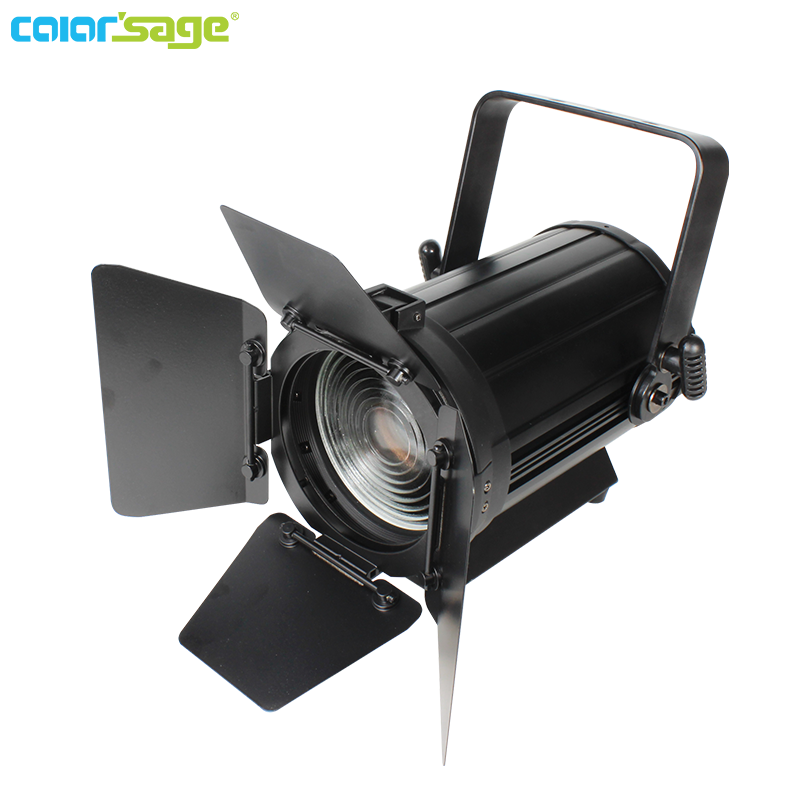

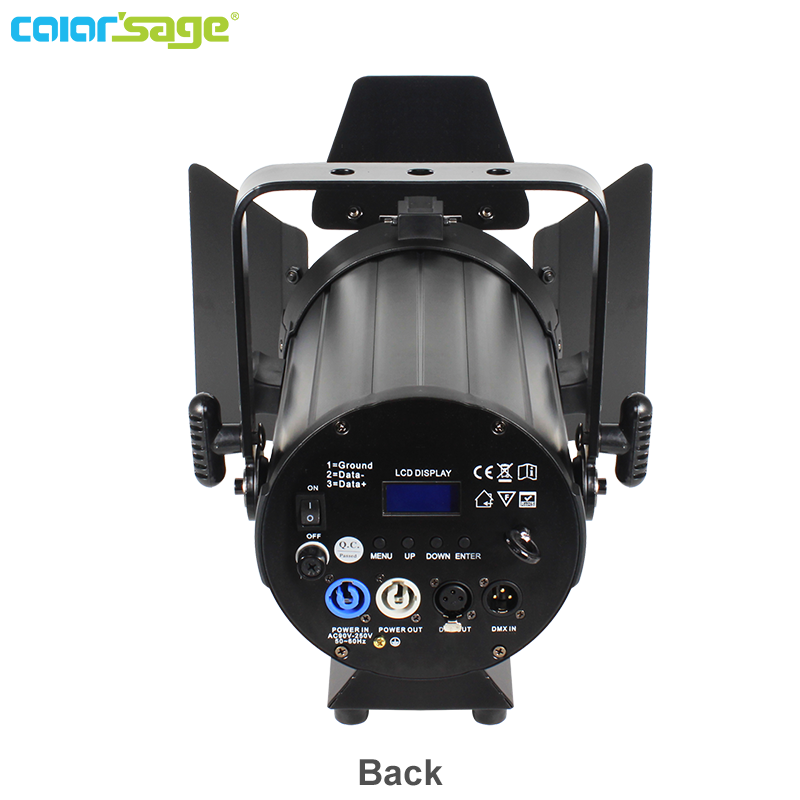

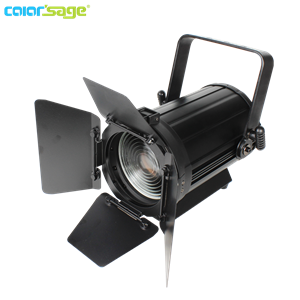

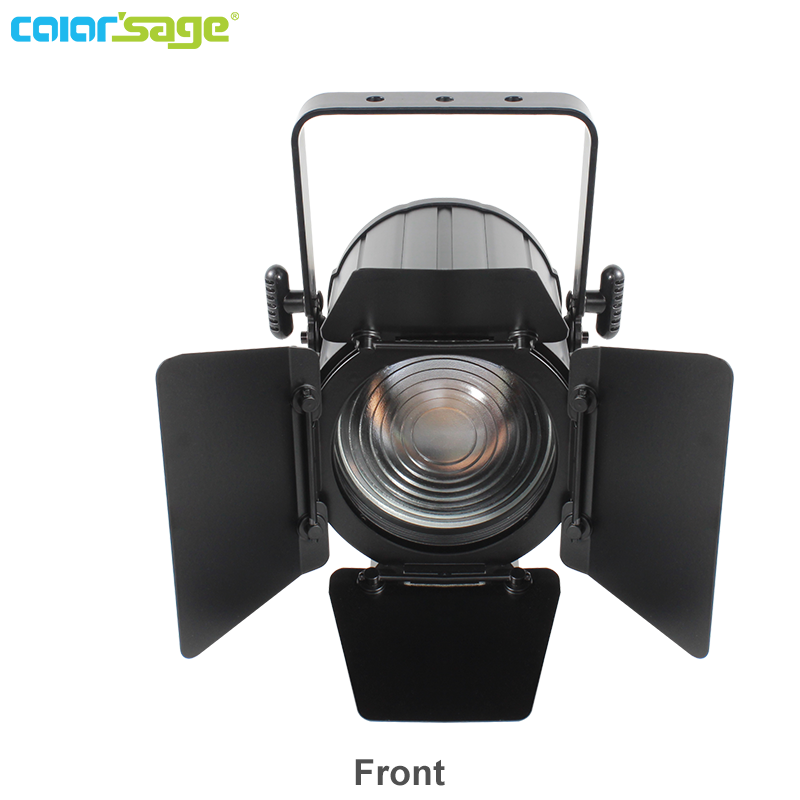

CS-T150A Mini Fresnel Light

Color Sage Lighting Electronics Limited

CS-T150A Mini Fresnel Light CS-T150A Mini Fresnel Light

Slave/Master * Sound actived * Auto * DMX 512
0-100%LED dimmer / Strobe effect


CS-T150A is a mini type Fresnel Light, color rendering Index is Ra≥92, high efficiency fresenal lens, with a manual zoom system from 15° to 50°.


The shell made by rugged, die cast aluminum alloy, thermally insulated knobs and single aluminum handle for installing.


This product has the advantages of 0-100% Smooth and precise linear dimmer, preset variable/random strobe and dimming pulse effect.This product is widely used in live studio lighting, lighting stage lighting, concert fill light and so on.


If you want to learn more, please contact customer service, you can also contact

For more information, you can follow our Facebook.

Thank you for your attention!

Model NO.: CS-T150A
LED Quantities 1pc COB LED
Input Voltage 90-260VAC/50-60Hz
Power Consumption 100W
Zoom Mode Manual zoom (Optional), from 15° to 50°.
Material Science Alloy

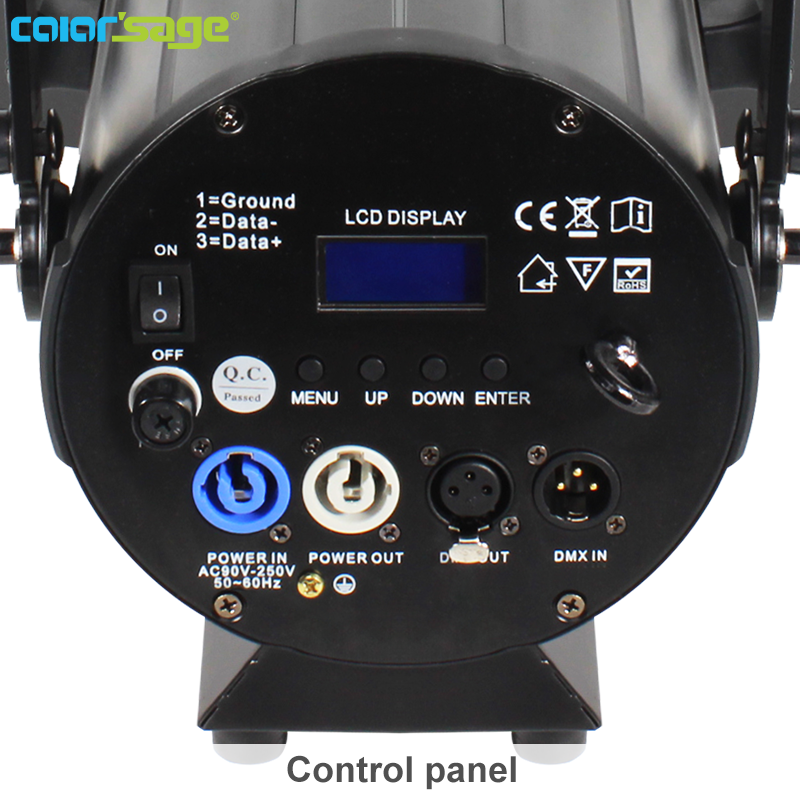

Control 1. Slave/Master,
2. Sound actived,
3. Auto,
4. DMX 512.
Color 5600K Cool white (Optional),
3200K Warm white (Optional),
RGBW 4 in 1 (Optional),
Cool white + Warm white 2 in 1 (Optional),
Effect 1. Dimming,
2. Strobe effect.
Channel 4/8 DMX channels USITT for RGBW 4 in 1,
2/5 DMX channels USITT for cool white + warm white 2 in 1,
1/3 DMX channels USITT for single color.
Display Screen LCD display
Packing & weight
Size 280mm*283mm*300mm
Net Weight 6kg
Packing 320mm*365mm*320mm
Gross Weight 6.5kg
