CS-B90A IP65 ABattery PAR Can

Color Sage Lighting Electronics Limited

CS-B90A IP65 ABattery PAR Can CS-B90A IP65 ABattery PAR Can

Master/Slave * Sound actived * Automatic * DMX 512 * UC IR wireless remote (6 colors with dimming, 9 mixing color options, auto color mode, strobe mode, auto fading mode, sound mode, master dimming and speed, IR ON/OFF)
Color mixing / Strobe effect / LED dimmer / Fading effect

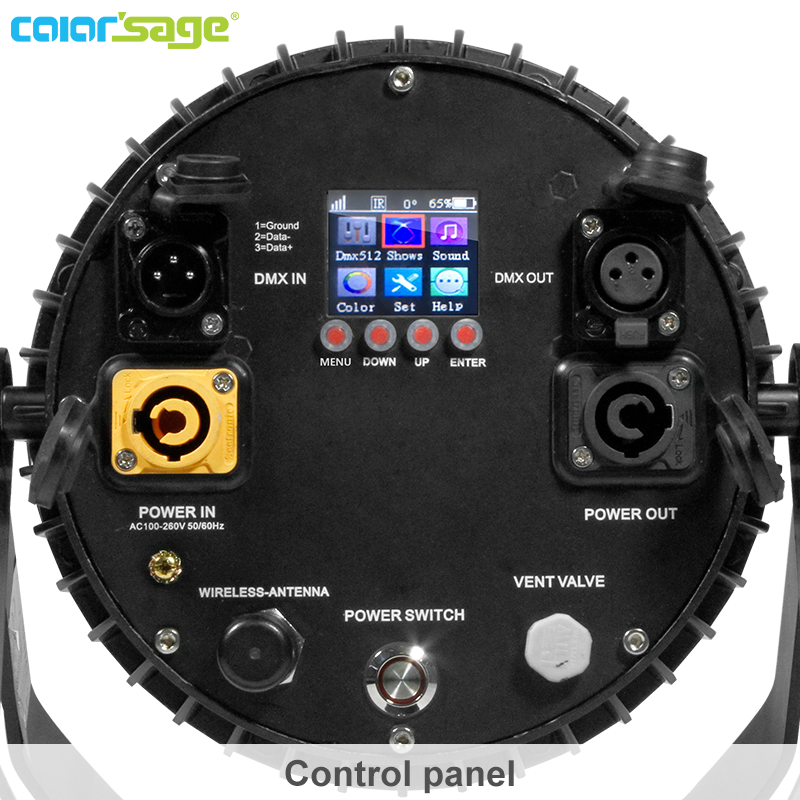

CS-B90A is an IP65 PAR CAN with 6pcs LEDs. 1.8" TFT LCD display screen, it can display current data, about backlight color, backlight brightness, fixture running time display available and fixture operation temperature display available.



The shell of this light is made of high quality aluminum die-casting structure design with optimum cooling system.



CS-BG90-1 xiaoguo





It can control via sound actived, AutomaticMaster/Slave and DMX 512. Also compatible with UC IR wireless remote (6 colors with dimming, 9 mixing color options, auto color mode, strobe mode, auto fading mode, sound mode, master dimming and speed, IR ON/OFF). Rechargeable secondary Li-ion battery built-in (auto charging once plugging in the power cable, 20 fixtures linkable in daisy chain) .



CS-BG90 kongzhimianban





This product is widely used in outdoor music festival lighting, large stage lighting, outdoor stage lighting, theater lighting, outdoor construction dyeing lighting and so on.



If you want to learn more, please contact customer service, you can also contact info@color-sage.com

For more information, you can follow our Facebook.

Thank you for your attention!

Model NO.:CS-B90A

Specifications
LED quantities 6pcs*18W 6 in 1 (Optional),
6pcs*15W 5 in 1 (Optional),
6pcs*10W 4 in 1 (Optional).
Input Voltage AC90-260V 50/60Hz
Power Consumption 110W 6 in 1 (Optional),
90W 5 in 1 (Optional),
60W 4 in 1 (Optional).
IP Rating IP65
Material Science Alloy

Function
Control 1. Master/Slave,
2. Sound actived,
3. Automatic

4. DMX 512,
5. UC IR wireless remote (6 colors with dimming, 9 mixing color options, auto color mode, strobe mode, auto fading mode, sound mode, master dimming and speed, IR ON/OFF)
Color RGBWA+UV 6 in 1 (Optional),
RGBWA 5 in 1 (Optional),
RGBW 4 in 1 (Optional),
Effect 1. Color mixing,
2. Strobe effect,
3. LED dimmer,
4. Fading effect.
Channel 6/10 CH 6 in 1 (Optional),
5/9 CH 5 in 1 (Optional),
4/8 CH 4 in 1 (Optional),
Beam Angle 15° (Optional),
25° (Optional),
45° (Optional).
Display Screen Colorful TFT display
Battery Type Lithium battery
Charging Time About 4 hours
Using Hours About 22 hours of sound active;
About 22 hours of Fade Mode;
About 5 hours of full on.
Life Time 800 Charges average lifetime

Packing & weight
Size 295mm*235mm*300mm
Net Weight 4.6kg
Packing 270mm*270mm*300mm
Gross Weight 5.3kg
