CS-A870A Architectural Light

Color Sage Lighting Electronics Limited

CS-A870A Architectural Light CS-A870A Architectural Light

Slave/Master * Sound actived * Auto * DMX 512
Color mixing / 0-100% Dimming / Rainbow effect / Strobe effect / Macro

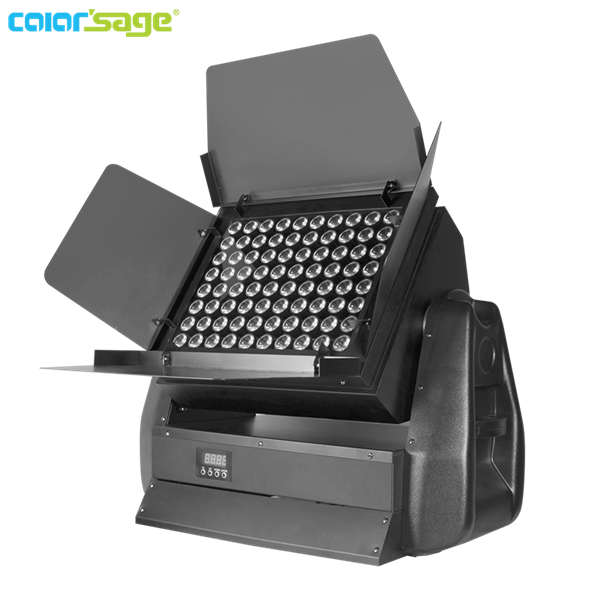

CS-A870A is an Architectural Light, which uses 80pcs 10W high brightness LEDs , the total power of 870W, a strong lighting effect. Its light source is characterized by a large range of light, light and bright colors uniform.


Alloy body with plastic base, IP rating is IP65. This product is available over the -45 ° C to 45 ° C (-49 ° F to 113 ° F) temperature range.


Colorful rainbow effect makes this lamp popular,this product built-in macro program, commonly used color mixing effect, with 4 kinds of commonly used control methods: Slave/Master, Sound actived, Auto, DMX 512, this product is very convenient to use, and the effect is also very beautiful.

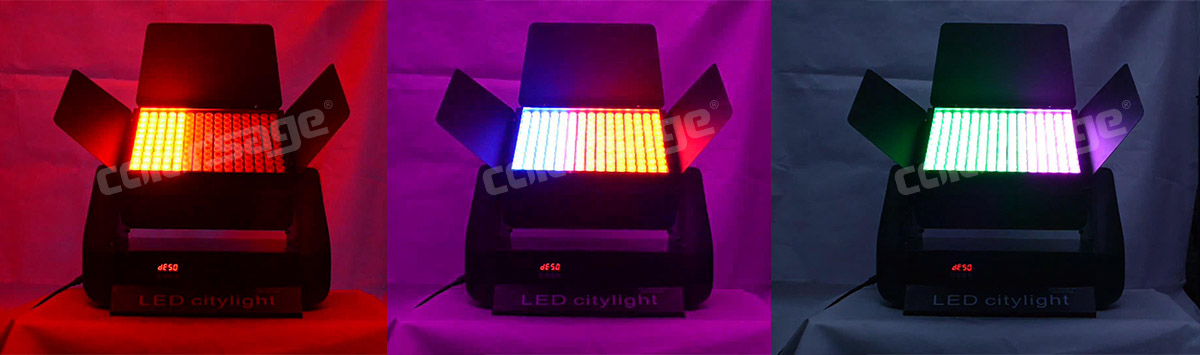

CS-CA870 xiaoguo

Model NO.: CS-A870A

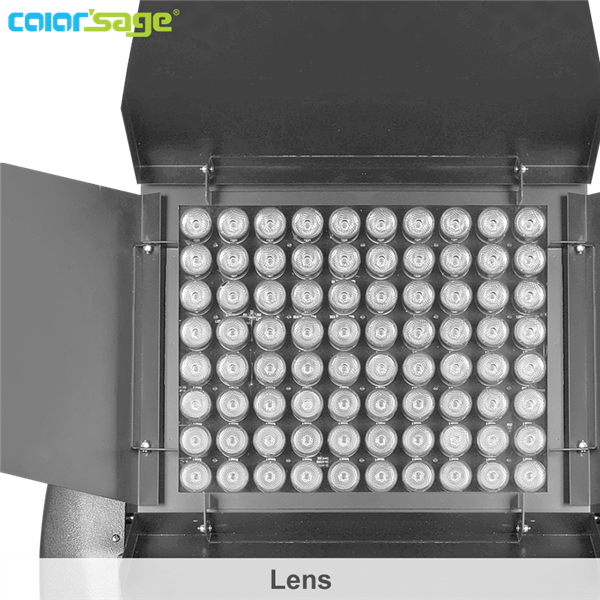

LED Quantities 80pcs LEDs
Input Voltage 90-260VAC/50-60Hz
Power Consumption 870W
IP Rating IP 65
Material Science Alloy & Plastic base
Control 1. Slave/Master,
2. Sound actived,
3. Auto,
4. DMX 512.
Color RGBW 4 in1
Effect 1. Color mixing
2. 0-100% Dimming,
3. Rainbow effect,
4. Strobe effect,
5. Macro.
Channel 3/5/7 DMX channels USITT
Beam Angle 25°

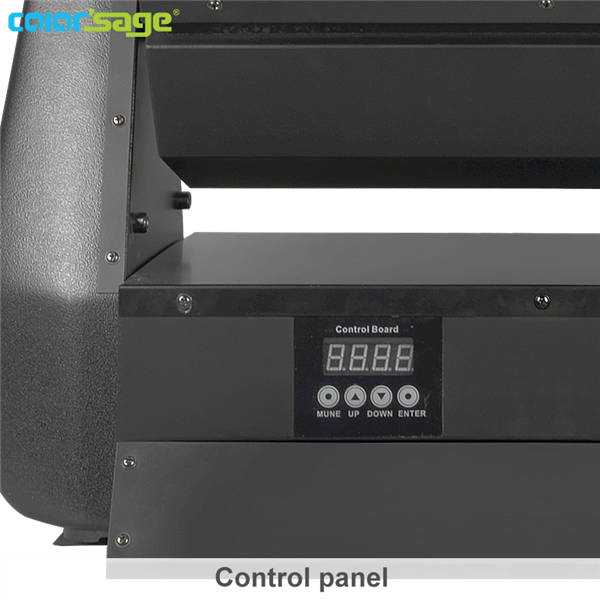

Display Screen LCD display
Packing & weight
Size 410mm*580mm*585mm
Net Weight 23kg
Packing 570mm*470mm*690mm
Gross Weight 27kg
