CS-M160A-Ⅱ Wash Light

Color Sage Lighting Electronics Limited

Master / Slave * Sound actived * Automatic * DMX 512
Color mixing / 0-100% Dimmer / Strobe effect

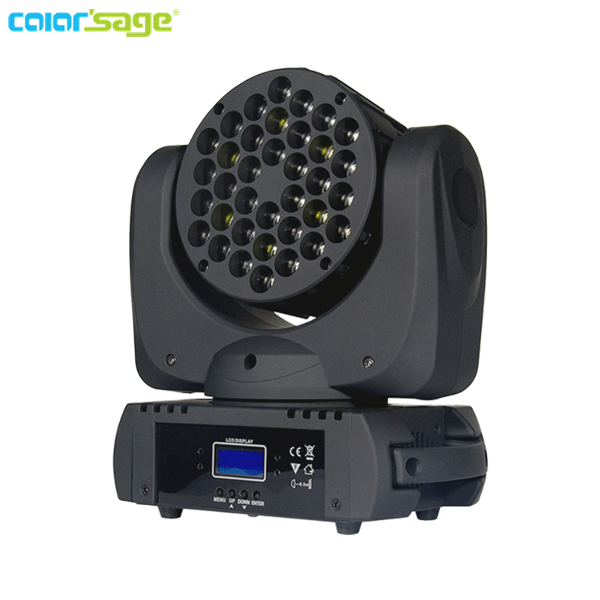

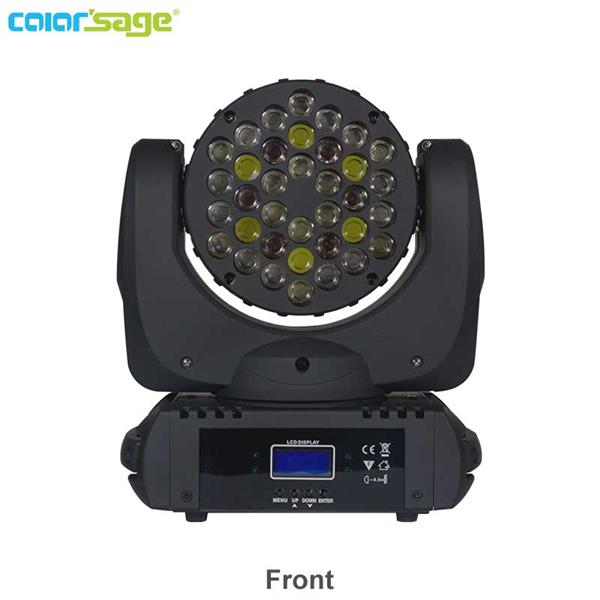

CS-M160A-Ⅱ is a mini wash moving head light with 36*3W LED, 8pcs Red, 10pcs Green,10pcs Blue, 8pcs White. High power output, bright colors, uniform illumination.

The shell of this light is made of high quality plastics, light weight and excellent heat dissipation. A white appearance or a black appearance.

This product is used to enliven atmosphere for family gatherings, KTV box, disco Ballroom, ballroom, nightclub, disco, bar, mall, wedding, square, park, etc,.

If you want to learn more, please contact customer service, you can also contact [email protected]

For more information, you can follow our Facebook.

Thank you for your attention!

Model NO.:	CS-MD160-Ⅱ

Specifications

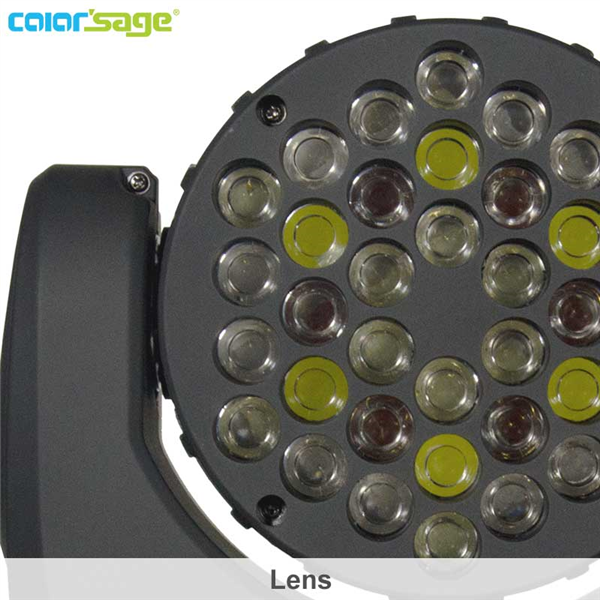

LED quantities	36*3W LED, 8pcs Red,10pcs Green, 10pcs Blue, 8pcs White.
Input Voltage	AC90V-240v,50/60HZ
Power consumption	160W
Material Science	Black plastics

Function
Control	1. Slave/Master 2. Sound actived 3. Auto 4. DMX 512
Color	RGBW
Effect	Color mixing, LED dimmer, Strobe effect.
Channel	9/16CH
Beam angle	8°
Pan/Tilt	540° /180°

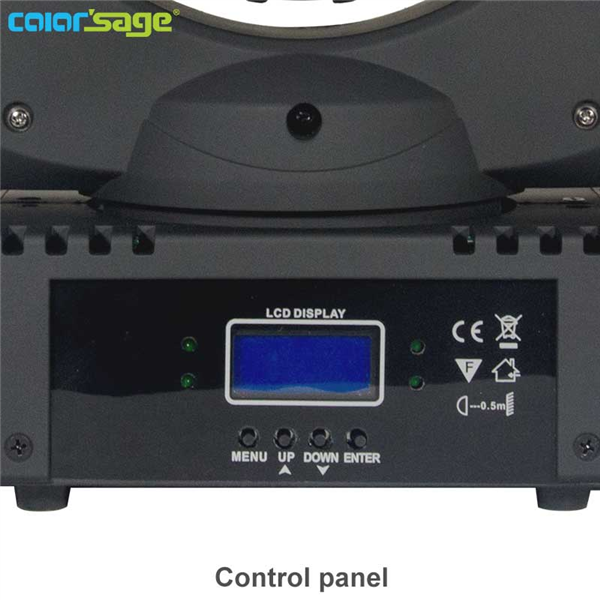

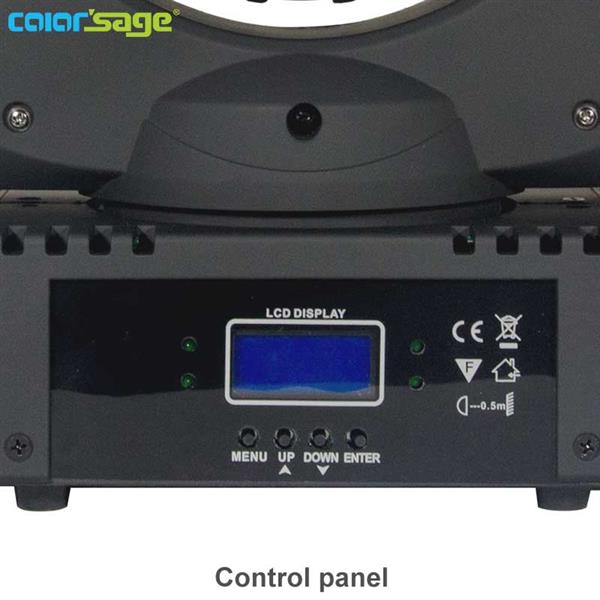

Display screen	2.4 inch TFT screen

Packing & weight
Size	296mm267mm167mm
Net Weight	4.5kg
Packing	360mm310mm200mm
Gross Weight	5.3kg
Carton Packing	530mm360mm340mm（2 pcs）
Gross Weight	12kg（2 pcs）

CS-MD160-Ⅱ MOVING HEAD Light Menu Operations
