CS-P170A IP65 Par Can

Color Sage Lighting Electronics Limited

CS-P170A IP65 Par Can CS-P170A IP65 Par Can

Master/Slave * Sound actived * Automatic * DMX 512
Rainbow effect / 0~100% Dimming / Strobe effect / Macro effects



CS-P170A is an outdoor par can, IP65.This par use 54pcs 3W LEDs, RGB 3 in 1 or RGBW 4 in 1 of light source colors you can choose. CS-PS170  features optimum optic design integrated with extremely effective aluminum heat sink system, quiet running. Dual mounting brackets for ground or hanging application, easy to use.



It features excellent rainbow effect, color mixing effect, 0-100% electronic dimming and blackout for all LEDs, strobe effect and pulse strobe effect. The fixtures is built in with internal programs and macros efffect. You can aslo used Automatic, Sound actived, Master/Slave and DMX 512 and to build special effect.



This product is commonly used in outdoor lighting, such as outdoor stage lighting, outdoor theater lighting, outdoor exhibition lighting, music festival lighting, store lighting, shopping mall lighting and so on.

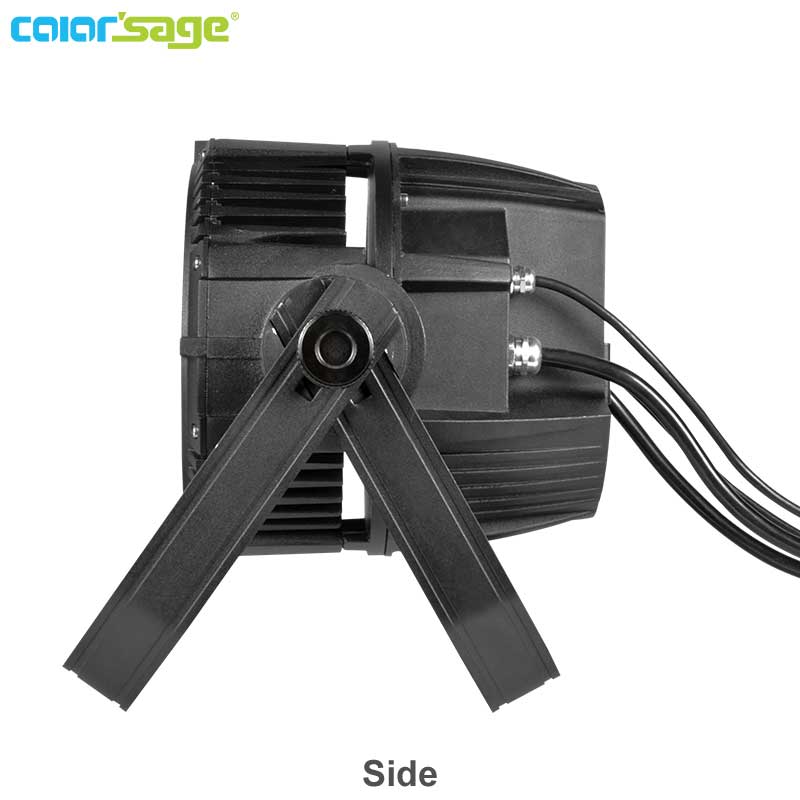

CS-PS170 1 (2)

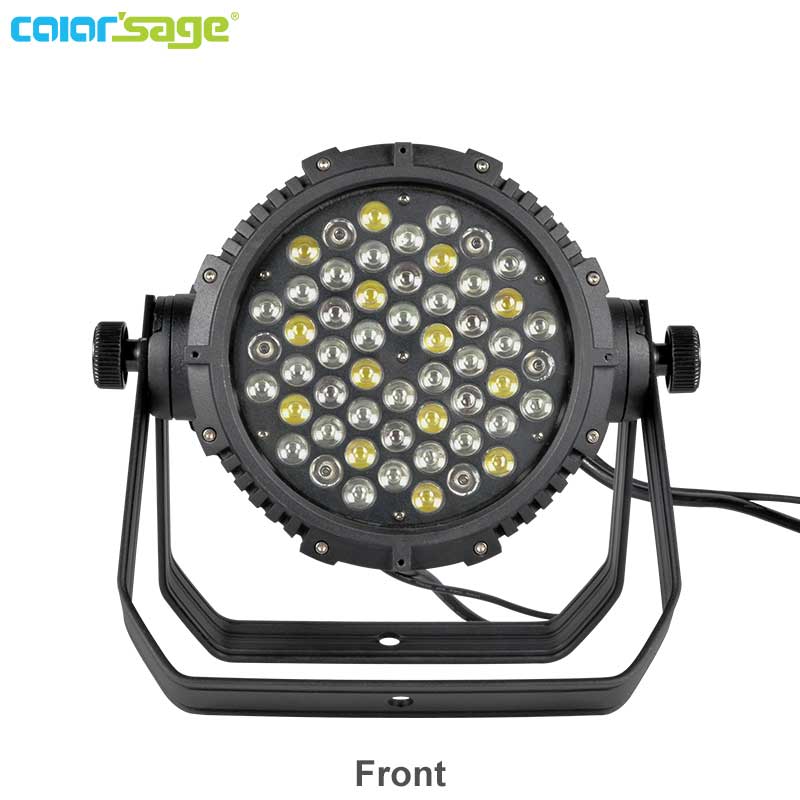

CS-PS170 1 (1)

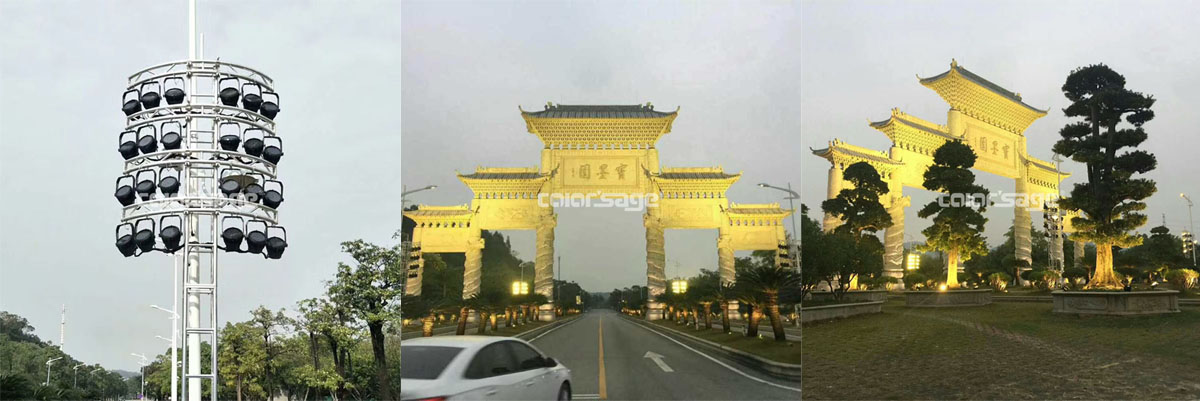

Project: Bao Mo Garden







If you want to learn more, please contact customer service, you can also contact info@color-sage.com

For more information, you can follow our Facebook.

Thank you for your attention!

Model NO.: CS-P170A

Specifications
LED Quantities 54pcs LEDs
Life Span 50,000 hrs
Input Voltage AC90-260V 50/60Hz
Power Consumption 170W
IP Rating IP65
Material Science Alloy

Function
Control 1. Master/Slave,
2. Sound actived,
3. Automatic,
4. DMX 512.
Color RGBW 4 in 1 (Optional),
RGB 3 in 1 (Optional).
Effect 1. Rainbow effect,
2. 0~100% Dimming,
3. Strobe effect,
4. Macro effects.
Channel 8 DMX channels USITT DMX-512 for RGBW 4 in 1,
7 DMX channels USITT DMX-512 for RGB 3 in 1.
Display Screen LCD display

Packing & weight
Size 324mm*260mm*263mm
Net Weight 8kg
Packing 305mm*305mm*280mm
Gross Weight 10kg
